1947-1955 Chevrolet 3100/3600 Pickup Running/Rolling Chassis (235 Engine Option)

1947-1955 Chevrolet 3100/3600 Pickup Running/Rolling Chassis (235 Engine Option)

Regular price $24,900.00 Sale

Freshly built rolling chassis for 1947-1955 Chevrolet Pickups with a 235 Rebuilt 6 Cylinder Engine Package & Tremec 5-Speed Manual Transmission. This chassis kit includes everything you need to get your truck rolling.

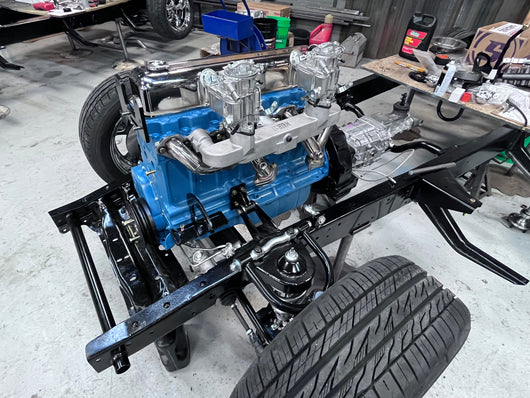

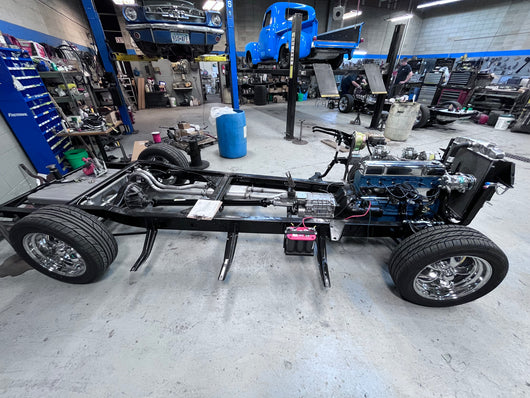

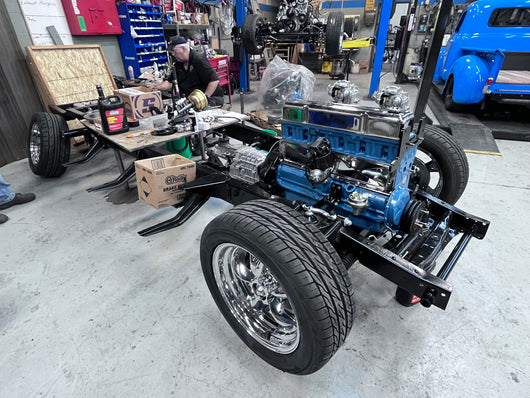

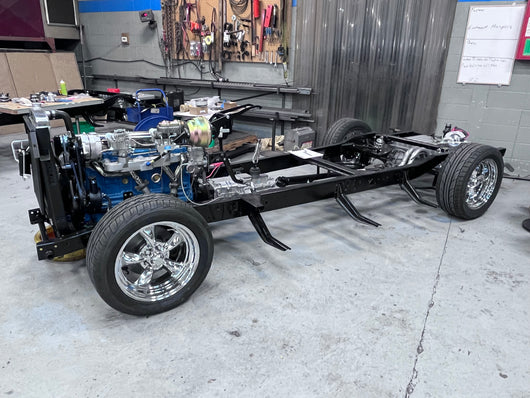

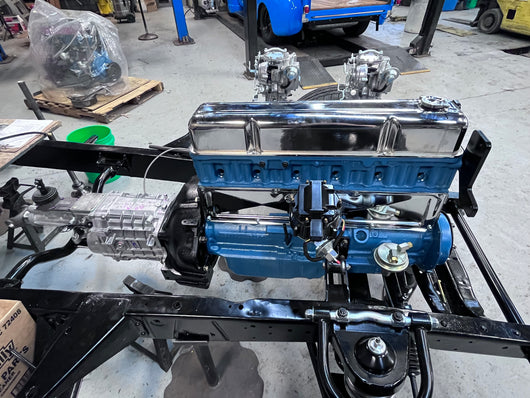

This is a complete rolling chassis with a running engine and transmission; brakes are fully plumbed and bled. The fuel tank is installed and plumbed, all you need to do is install your 1947-1955 Chevy truck body, wire up & you'll have a running, driving hot rod!

Package includes $600.00 frame core charge.

Product Details
  • 10 Gauge Stock Reconditioned Boxed Frame Rails

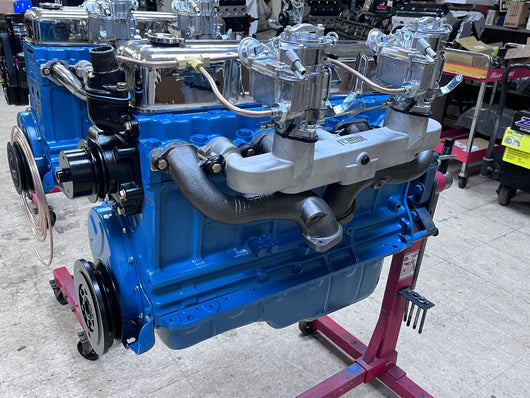

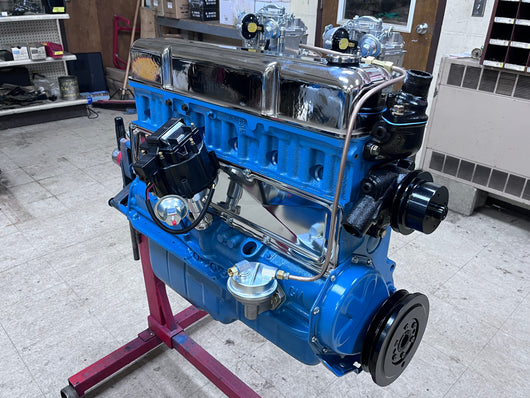

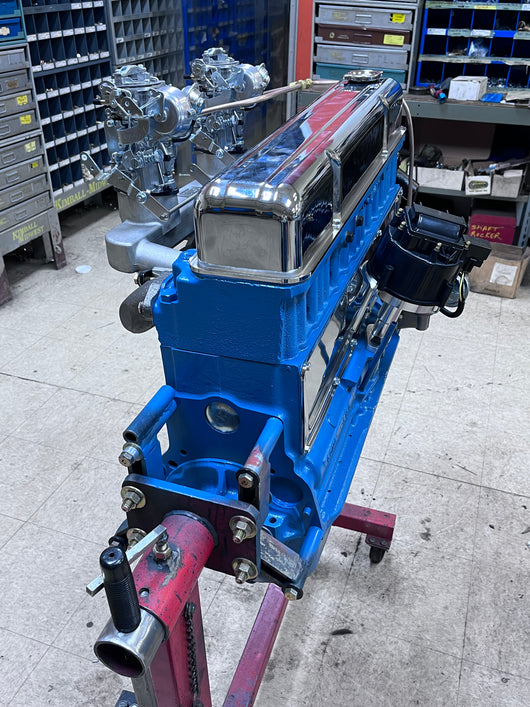

  • 1954-1962 235 Rebuilt 6 Cylinder Engine
  • HEI Electrotonic Ignition Distributor
  • Fenton Aluminum Dual 1 BBL Carb Intake Manifold
  • Tremec 5-Speed Manual Transmission
  • Hydraulic Clutch
  • New Front Radiator Support
  • New Rear Center Frame Crossmember
  • New Shock Mounting Bar
  • New Tubular Transmission Crossmember
  • Mustang II Style Weld-In Front Crossmember & Front Sway Bar
  • New Upper & Lower Tubular Control Arms, Ball Joints, and Bushings
  • Mustang II 2” Drop Spindles
  • 600 lb. Front Coilovers
  • Parallel 4 Link
  • 225 lb. Rear Coilover Setup
  • 60", 8.8" Ford Housing & Axles with a 3.55 Gear Ratio
  • Chassis & All Parts Will Have Been Powder Coated Black
  • New Front Calipers, Pads, and Rotors
  • New 8.8" Ford Rear Disc Brake Setup
  • All Brake Lines Will Have Been Plumbed with 1/4" & 3/16” Teflon Brake Lines
  • New 1947-1954 Firewall Mount 8" Dual Brake Booster & Pedal
  • New 18 Gauge Smooth Dash Panel/Template
  • New Corvette Dual Master Cylinder
  • Stainless Steel Headers
  • New 2” Exhaust with Dual Inlet/Outlet Mufflers
  • Balanced Fast Shafts 3" Drive Shaft with New U-Joints

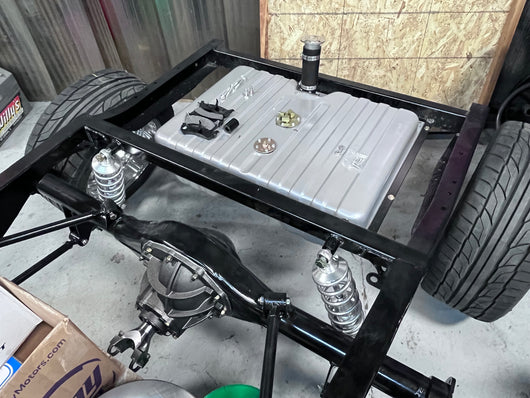

  • Tanks, Inc. Mustang II 22 Gallon Fuel Tank with Straps to Mount Under the Box
  • New 3/8” Fuel Line Ran Front to Back

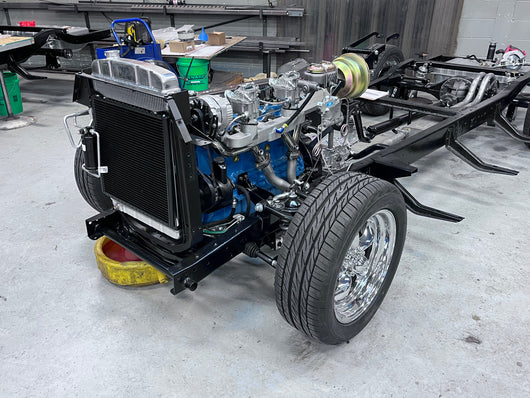

  • New Direct Fit Aluminum Radiator
  • New Chrome Tilt Steering Column, Choice of Either Column Shift or Floor Shift - Linkage Included
  • New 14” Leather Wrapped Aluminum Steering Wheel, Three Choices: Ford Banjo, GT Grant, or Wing Style
  • New Steering Joints
  • 12 Circuit Truck Wire Harness
  • New Group 25, 12 Volt Battery
  • U.S. Wheel 7"/8" x 15" Steel Wheels & 225/70R15 Tires
  • Fully Assembled, Test Run, Full Fluid Levels, Brakes Bled

Additional Options Available

385-400 HP 5.3L Option with Cam Change & 2800 Stall Torque Converter... Add $700.00

425-445 HP Stage II 5.7L EFI Engine with Custom .600 Lift Camshaft... Add $1,400.00

Electric Cooling Fan... Add $295.00

Ford 8.8" 31 Spline Trac Loc Posi Unit... Add $500.00

9" Ford 35 Spline Axles... Add $1,350.00

Wheel Powder Coating (Black)… Add $200.00

Ididit Steering Column Kit... Add $515.00

American Racing VN Series Wheels & Tires... Starting at $1,500.00

Vintage Air Climate Control System... Staring at $1,500.00

Dakota Digital, Inc. Gauge Instruments... Starting at $795.00

Dolphin Gauges Gauge Instruments... Starting at $445.00

Please contact us if you are interested!

:
